商品類型：表面貼裝設備周邊系列

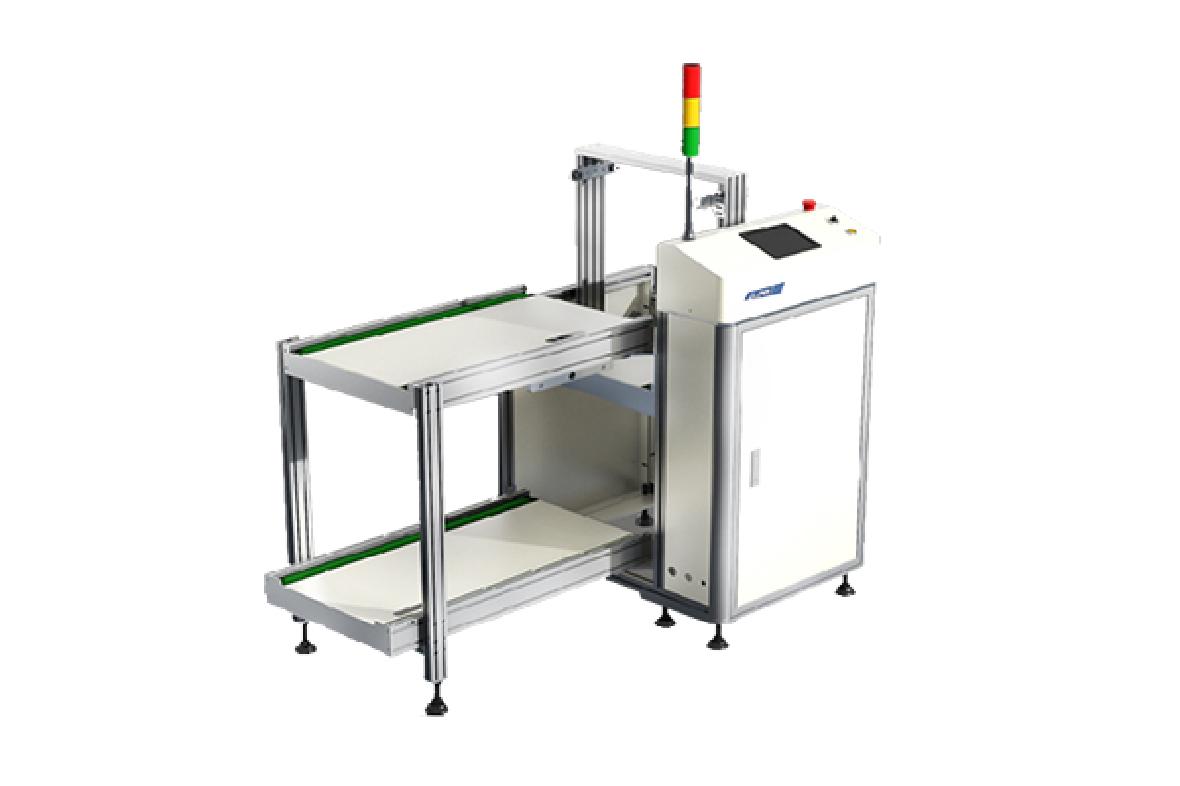

產品描述：用于SMT生產線的源頭，對應后置設備的需板動作要求，將存儲在周轉箱內的PCB板逐一傳送到生產線上。周轉箱清空后，空周轉自動輸出，由滿載周轉箱自動輸入取代。
下載列表：
咨詢電話：051265650260
用于SMT生產線的源頭，對應后置設備的需板動作要求，將存儲在周轉箱內的PCB板逐一傳送到生產線上。周轉箱清空后，空周轉自動輸出，由滿載周轉箱自動輸入取代。
Application：
Loader
The PCB is used in the front end of the SMT production line ,which corresponds to the requirements of the board of
the rear equipment,and then sends the one that is stored in the turnover box to the production line one by one.After the turnover box is empty,the empty turnover box is automatically output,and is replaced by a full loader turnover box.
收板機
用于SMT生產線的尾部，對應前置設備的給板動作要求，將生產線上的成品PCB板逐一收存在周轉箱內。周轉箱存滿后自動下層輸出，由空周轉箱取代。
UNLoader
A PCB automatically storage equipment,at the finish end of a SMT line,for the need of previous machine,the unloader collects PCBs and stores them in the magazine.An empty magazine will automatically replace the full-loaded magazine.
特點： Features：
| a）PLC控制系統。 | a）PLC Control System |
| b）可放置3個周轉箱。 | b）Maximum 3 Magazines |
| c）5種升降分段選擇：10mm 20mm 30mm 40mm 50mm | c）5 Pitch Selections:10mm 20mm 30mm 40mm 50mm |
| d）流程方向：左至右或右至左（流向指定） | d）Conveyor Direction:right to left,or left to right(option) |
| e）多項聲光報警。 | e）Multi Alarm System |
| Model | 型號 | GLD-320 | GLD-400 | GLD-460 | GLD-530 |
| Overall Dimension | 機臺尺寸 | （L）1370*（W）770*（H）1300mm | （L）1570*（W）840*（H）1300mm | （L）1710*（W）890*（H）1300mm | （L）1740*（W）960*（H）1300mm |
| Control System | 控制方式 | PLC | PLC | PLC | PLC |
| PCB Size(L*W) | PCB尺寸(L*W) | Min50*50-Max330*250mm | Min50*50-Max430*330mm | Min50*50-Max500*390mm | Min50*50-Max500*460mm |
| PCB Conveyor Direction | 傳送方向 | 左至右 （流向指定） | 左至右 （流向指定） | 左至右 （流向指定） | 左至右 （流向指定） |
| Conveyor Height | 傳送高度 | 920±30mm | 920±30mm | 920±30mm | 920±30mm |
| Pitch Selection | 步距選擇 | 10mm,20mm, 30m,40mm,50mm | 10mm,20mm, 30m,40mm,50mm | 10mm,20mm, 30m,40mm,50mm | 10mm,20mm, 30m,40mm,50mm |
| size of magazine | 料架規格 | (L)350*(W)320 *(H)570mm | (L)460*(W)400 *(H)570mm | (L)535*(W)460 *(H)570mm | (L)535*(W)530 *(H)570mm |
| Num of magazine | 料架數量 | 4 | 3 | 3 | 3 |
| Power supply | 電源 | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Air source | 氣源 | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
| Weight | 機臺重量 | about190KG | about215KG | about218KG | about230KG |
| Power consumption | 功率 | 0.5KW | 0.5KW | 0.5KW | 0.5KW |
| Cycle | 循環周期 | 5S | 5S | 5S | 5S |
| Magazine change time | 換箱時間 | 22S | 22S | 22S | 22S |
| Capacity tonnage | 承載重量 | 50KG | 50KG | 50KG | 50KG |
| Functional principle | 功能原理 | 自動送板功能 | 自動送板功能 | 自動送板功能 | 自動送板功能 |
